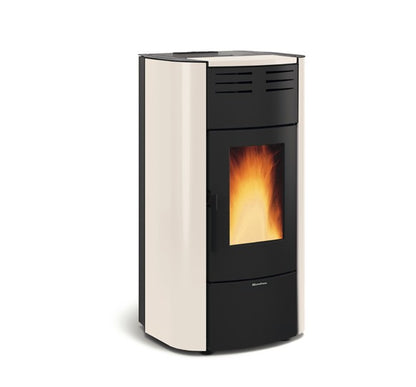

Nordica-Extraflame Raffaella H18 IDRO - Ivory / Grigio Luce

Regular price
€5,022.00 EUR
Regular price
Sale price
€5,022.00 EUR
Tax included.

Features: • High temperature painted steel covering • Combustion chamber in thick steel • Extractable ash drawer • Door fire and brazier in cast iron • Shell and tube exchanger (manual cleaning) • Hermetic tank • Front room ventilation with dedicated motor, excludable • Ceramic igniter • Circulator with PWM control • Air relief valve • Thermal and pressure safety • Pressure transducer and display pressure value indication • Safety valve 3 bar • Expansion tank • Wide fire vision • Ergonomic handle • Output smoke outlet possibilities: rear •  Over heating Thermostat • Internal thermostat • Foreseen for external thermostat (TA)  • Weekly chrono thermostat.

21,7 kW rated thermal input
18,0 kW-H2power given back to water
623 mheatable

  • Dimensions (W-H-D) 633x1176x626 mm
  • Net weight 214 Kg
  • Efficiency 93,8 %
  • Hourly consumption 1,2 - 4,8 kg/h
  • Smoke outlet diameter 100 mm P
  • Feed box total capacity 35 kg
  • Energy Label A+
